44-Pin MAN Harness Connector Set – Engine & Gearbox Loom Repair Solution
The 44-Pin MAN Harness Connector set is a professional-grade replacement designed for repairing and rebuilding wiring looms on MAN trucks. This connector style is commonly used across MAN TGA, TGS, TGX, and F-series platforms, providing a secure and durable electrical link between the engine harness, gearbox harness, and main chassis loom.
If your original connector has suffered heat damage, corrosion, oil contamination, or mechanical wear, replacing it with a new 44-Pin MAN Harness Connector restores reliability and eliminates intermittent electrical faults.
Why the 44-Pin MAN Harness Connector Is Essential
On MAN trucks, the 44-Pin MAN Harness Connector manages critical communication between:
-
Engine ECU
-
Gearbox controller (TipMatic)
-
Sensors and actuators
-
CAN lines
-
Powertrain management systems
When this connector becomes damaged, the truck may suffer:
-
Engine misfires
-
Gearbox malfunction warnings
-
CAN-line dropouts
-
No-start conditions
-
Fault codes for missing sensor inputs
-
Intermittent electrical failures
Replacing a burnt, loose, or corroded connector prevents unnecessary diagnostics and avoids expensive part replacements caused by incorrect fault tracing.
What’s Included in This 44-Pin MAN Harness Connector Kit
This complete connector set includes:
-

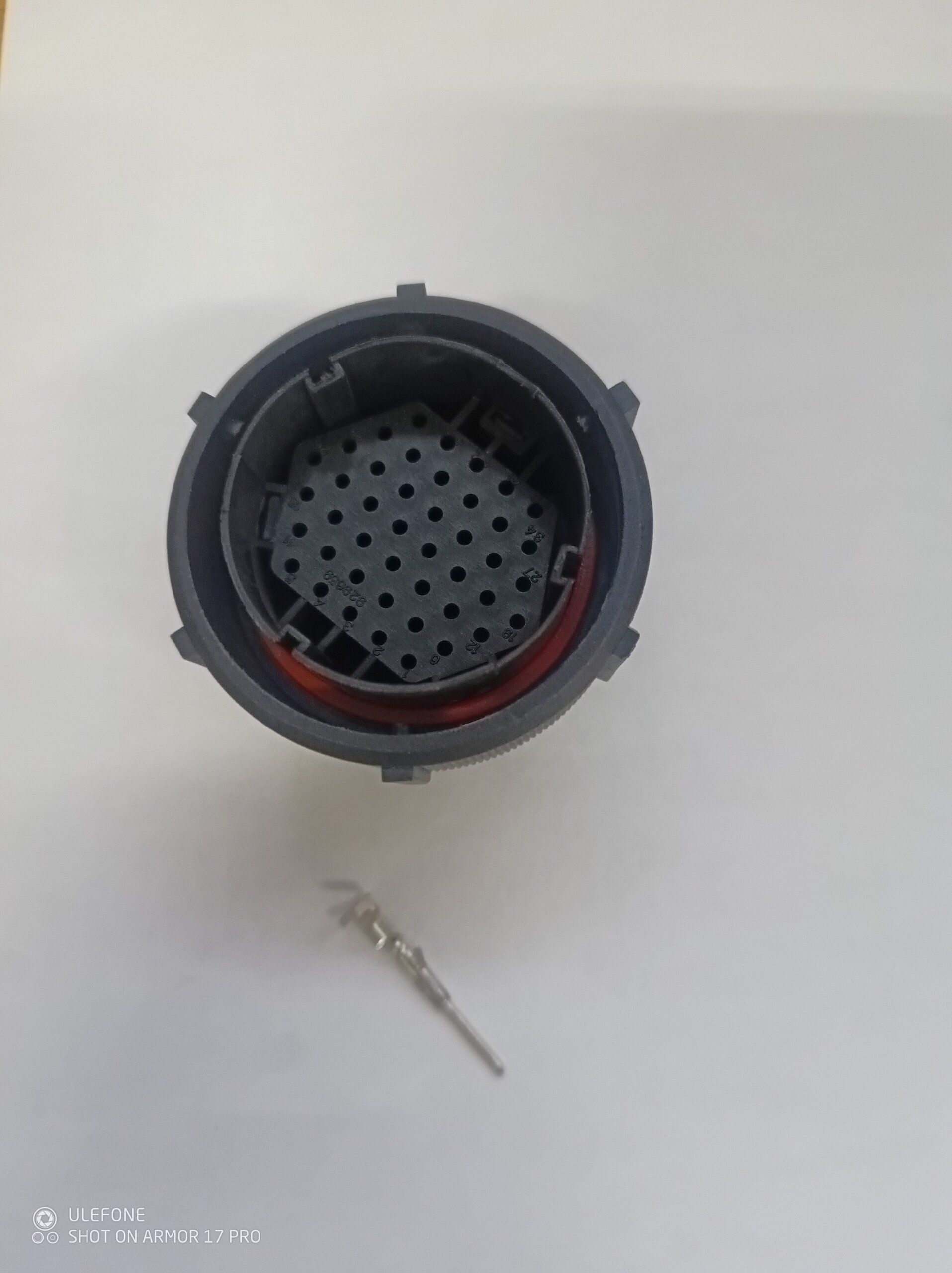

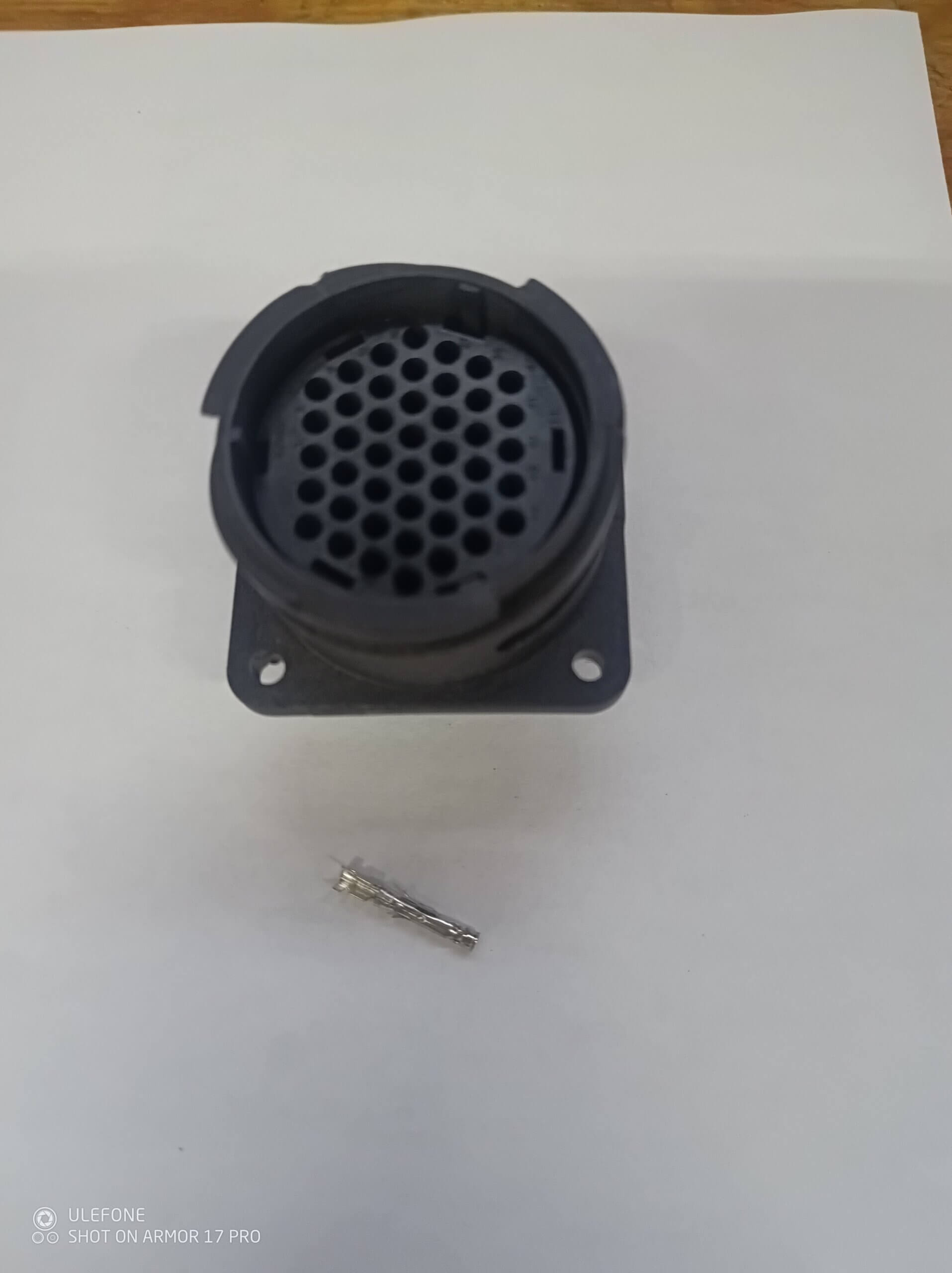

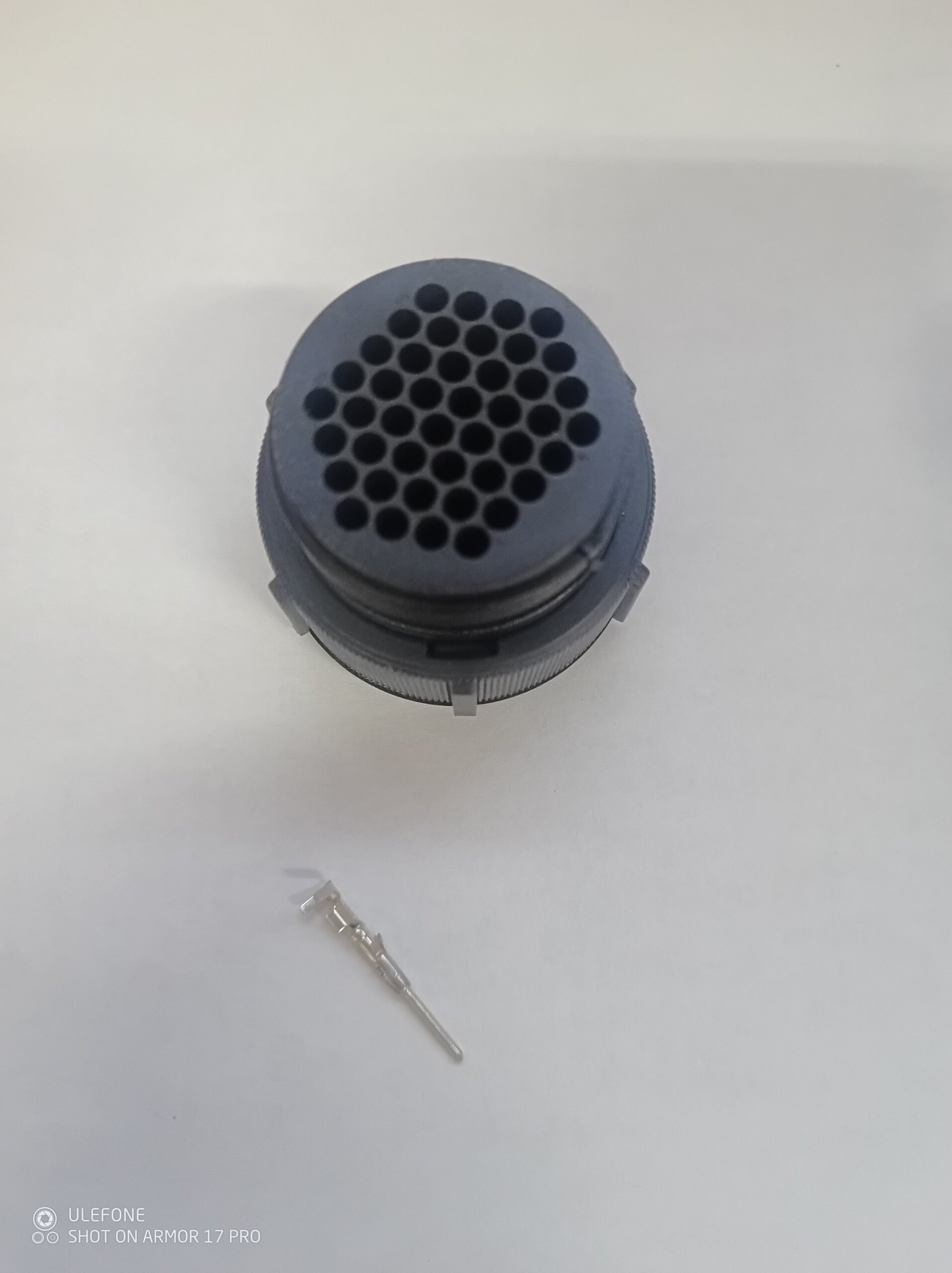

1 × 44-Pin MAN Male Connector Body
-
1 × 44-Pin MAN Female Connector Body
-
Set of male terminals
-
Set of female terminals
-
Weather-sealed locking system
-
High-temperature polymer housing
-
Corrosion-resistant terminal materials
The 44-Pin MAN Harness Connector is suitable for engine bay environments, gearbox-mounted looms, and customised workshop test benches.
Compatible MAN Truck Models
This connector style is used on many MAN platforms, including:
-
MAN TGA
-
MAN TGS
-
MAN TGX
-
MAN F2000 / M2000 (various configurations)
-
MAN TipMatic gearbox harnesses
-
MAN D20, D26, D28 engine wiring looms
If you’re repairing powertrain wiring or rebuilding a damaged ECU or gearbox harness, this 44-Pin MAN Harness Connector set is the correct replacement part.
Typical Applications
Technicians, auto electricians, and repair centres use this connector for:
-
Rebuilding damaged wiring looms
-
ECU connector repairs
-
Gearbox control module harness repairs
-
Engine and chassis harness restoration
-
Custom diagnostic test harnesses
-
Bench simulators for MAN ECUs and gearbox actuators
-
Replacement for melted, cracked, or contaminated plugs
Durability & Build Quality
Engineered for heavy-duty commercial vehicle environments, the 44-Pin MAN Harness Connector delivers:
-
Excellent vibration resistance
-
High-temperature stability
-
Secure terminal locking
-
Weather-sealed design
-
Chemical-resistant polymer housings
-
Long-life plated metal terminals
This ensures long-term reliability even in harsh engine bay conditions.
