Description

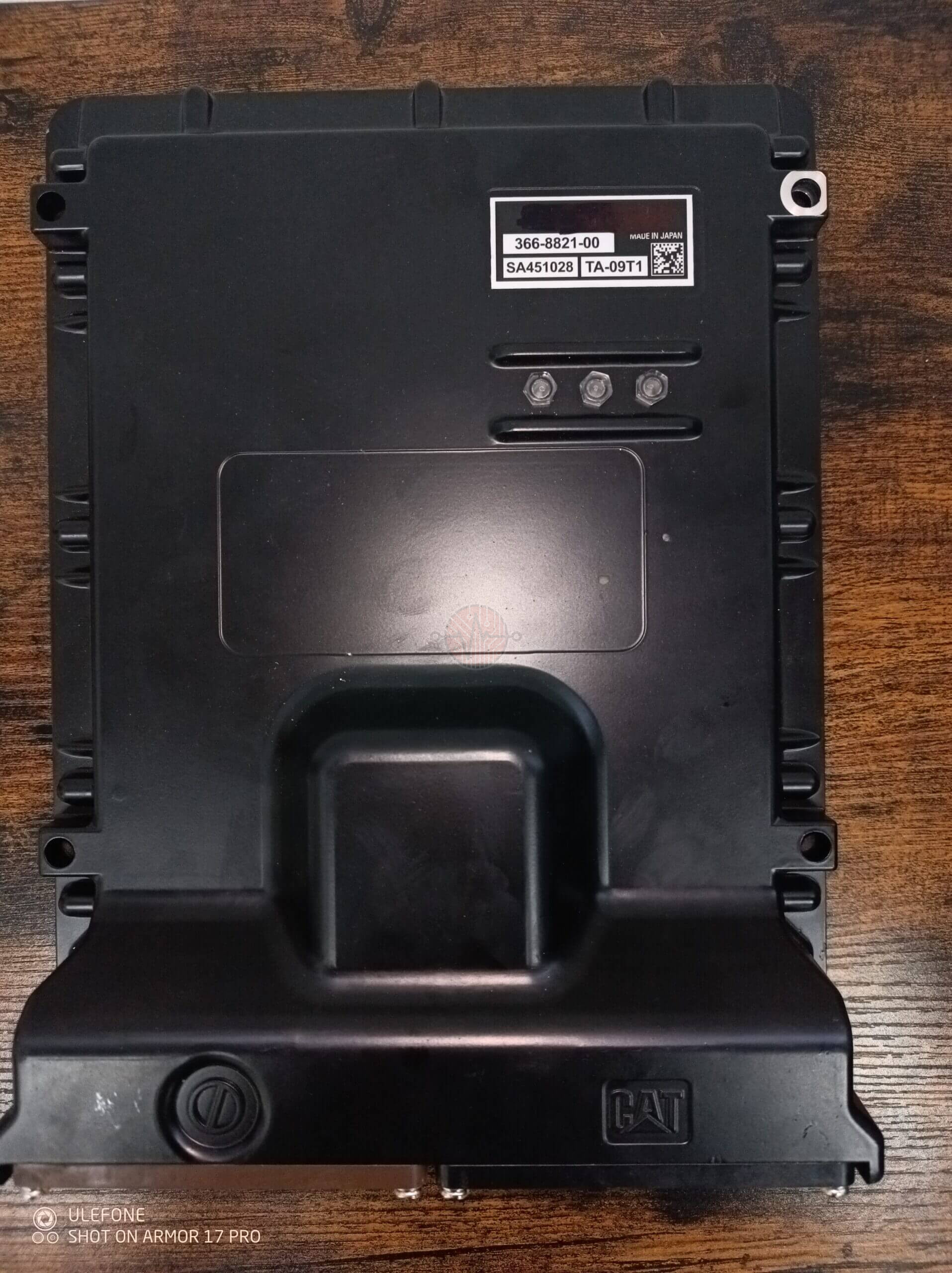

The CAT Hydraulic Controller (366-8821-00 / SA451028 / TA-09T1) is an essential electronic module responsible for managing hydraulic operations in Caterpillar heavy machinery. This controller ensures optimal hydraulic pressure, flow control, and system responsiveness, improving efficiency and performance across various construction and earthmoving applications.

However, due to harsh operating environments, these controllers can develop faults, leading to operational failures, system warnings, or complete shutdowns of hydraulic functions. Autolectronix specializes in professional electronic repair services for this unit, restoring functionality and reliability without the need for costly replacements.

Common Issues with the CAT Hydraulic Controller (366-8821-00 / SA451028 / TA-09T1):

1. No Communication with the ECU:
   • The controller fails to send or receive data, often due to damaged circuits, faulty processors, or corrupted software.
2. Hydraulic System Failure:
   • Machine experiences weak hydraulic response, loss of pressure, or failure to actuate cylinders due to control board issues.
3. Intermittent Operation or System Errors:
   • The unit may work sporadically or display error codes, often caused by failing capacitors, damaged power circuits, or corroded PCB traces.
4. Power Supply Failures:
   • The controller may not power up due to blown fuses, defective voltage regulators, or damaged connectors.
5. Water Damage & Corrosion:
   • Exposure to moisture can lead to oxidized circuits, short circuits, or internal board damage, causing complete controller failure.
6. Overheating & Burnt Components:
   • High temperatures can cause board overheating, component failure, or melting of solder joints, resulting in loss of function.

Our Repair Process:

At Autolectronix, we offer a cost-effective repair service to get your CAT hydraulic controller working like new.

✔ Comprehensive Diagnostics: We use advanced test equipment to identify faults.

✔ Component-Level Repairs: We replace burnt components, fix PCB tracks, and restore damaged circuits.

✔ Software & Firmware Restoration: We ensure the controller is programmed correctly and ready for use.

✔ Testing on Simulated Machinery Conditions: To guarantee functionality, all repaired units undergo rigorous real-world simulation tests.

✔ Fast Turnaround Time: We prioritize quick repairs to minimize your machine's downtime.

✔ Warranty on Repairs: We back our repairs with a 3-month warranty (extendable up to 12 months for selected units).

✔ New Module Supply Available: We can also supply brand new CAT hydraulic controllers. Please enquire about pricing and programming requirements.

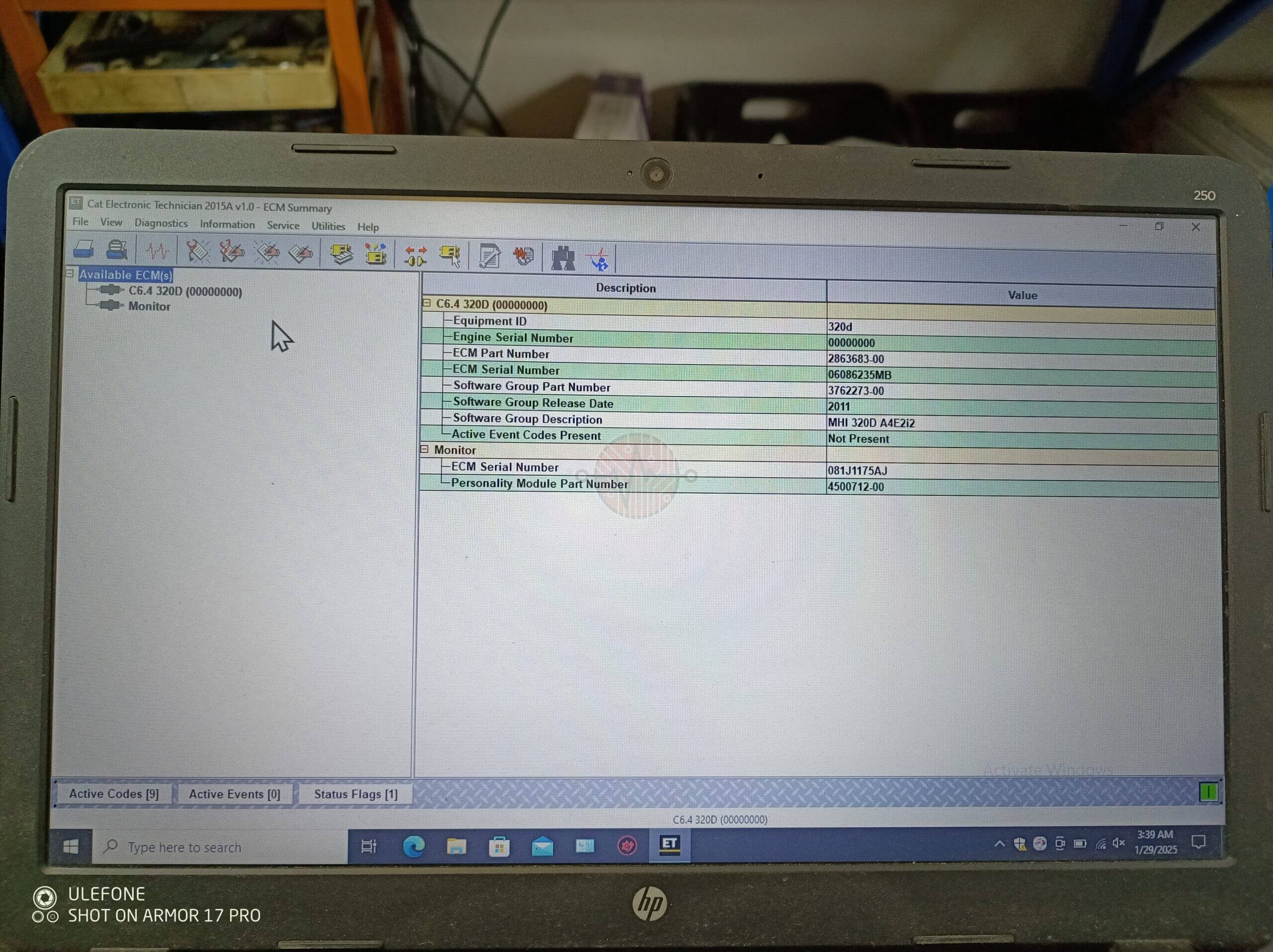

✔ Limited Bench Testing & Diagnostics: We offer bench testing and diagnostic reports to assess the module's condition before repair or replacement.

Supported Equipment

The 366-8821-00 / SA451028 / TA-09T1 hydraulic controller is commonly found in various Caterpillar construction and earthmoving equipment, including:

• CAT Excavators (320, 325, 330, 336, 349 series)
• CAT Wheel Loaders (950, 962, 980 series)
• CAT Dozers (D6, D7, D8, D9 series)
• CAT Motor Graders (12M, 14M, 16M series)
• CAT Articulated Dump Trucks (745, 740, 735 series)

If your CAT machine's hydraulic system is experiencing electrical faults, our repair service can restore full functionality without expensive module replacements.
