Isuzu 4HK1 6HK1 ECU Repair – Professional Transtron ECU Restoration by Autolectronix
Autolectronix specialises in Isuzu 4HK1 6HK1 ECU Repair, restoring faulty Transtron ECUs found in medium-duty and heavy-duty Isuzu trucks. The 4HK1 and 6HK1 engines rely heavily on the electronic control module to manage injection timing, rail pressure, boost control, SCV actuation, and sensor communication. When these ECUs fail, the truck may enter limp mode, lose power, misfire, or fail to start entirely.
Instead of replacing the ECU at high cost, Autolectronix offers a cost-effective repair solution designed to restore full OEM functionality and reliability.
⭐ Common Isuzu 4HK1 / 6HK1 Transtron ECU Faults We Repair
🔧 1. No Communication with Diagnostic Tools
A frequent symptom seen in units with damaged MCUs, corrupted firmware, or broken PCB tracks. Our Isuzu 4HK1 6HK1 ECU Repair includes full communication line restoration.
🔧 2. Engine Cranks but Does Not Start
Often caused by failing injector driver transistors or internal power supply faults. Repairs restore injection synchronization and starting reliability.
🔧 3. Water Damage / Corrosion
ECUs installed in engine bays often suffer moisture ingress. We repair corroded copper tracks, replace compromised components, and reseal the unit.
🔧 4. No Power to ECU
Internal power regulation failures lead to completely dead ECUs. We rebuild voltage supply sections and reinforce weak circuit paths.
🔧 5. Injector & SCV Control Faults
Incorrect SCV control or injector driver errors can trigger DTCs such as:
-
P0200 (Injector Circuit Malfunction)
-
P062D (Fuel Injector Driver Circuit Performance)
-
P0089 / P0093 (Fuel Pressure Control Errors)
🔧 6. Boost & Sensor Signal Issues
Sensor faults such as P0045 (Turbo Control Circuit), P0341 (Cam Sensor), or P0336 (Crank Sensor) are often caused by internal ECU failures rather than the sensors themselves.
🔧 7. Multiple DTCs / False Error Codes
Software corruption can create unrelated diagnostic trouble codes. Our repair includes full firmware restoration.
⭐ Supported ECU Part Numbers

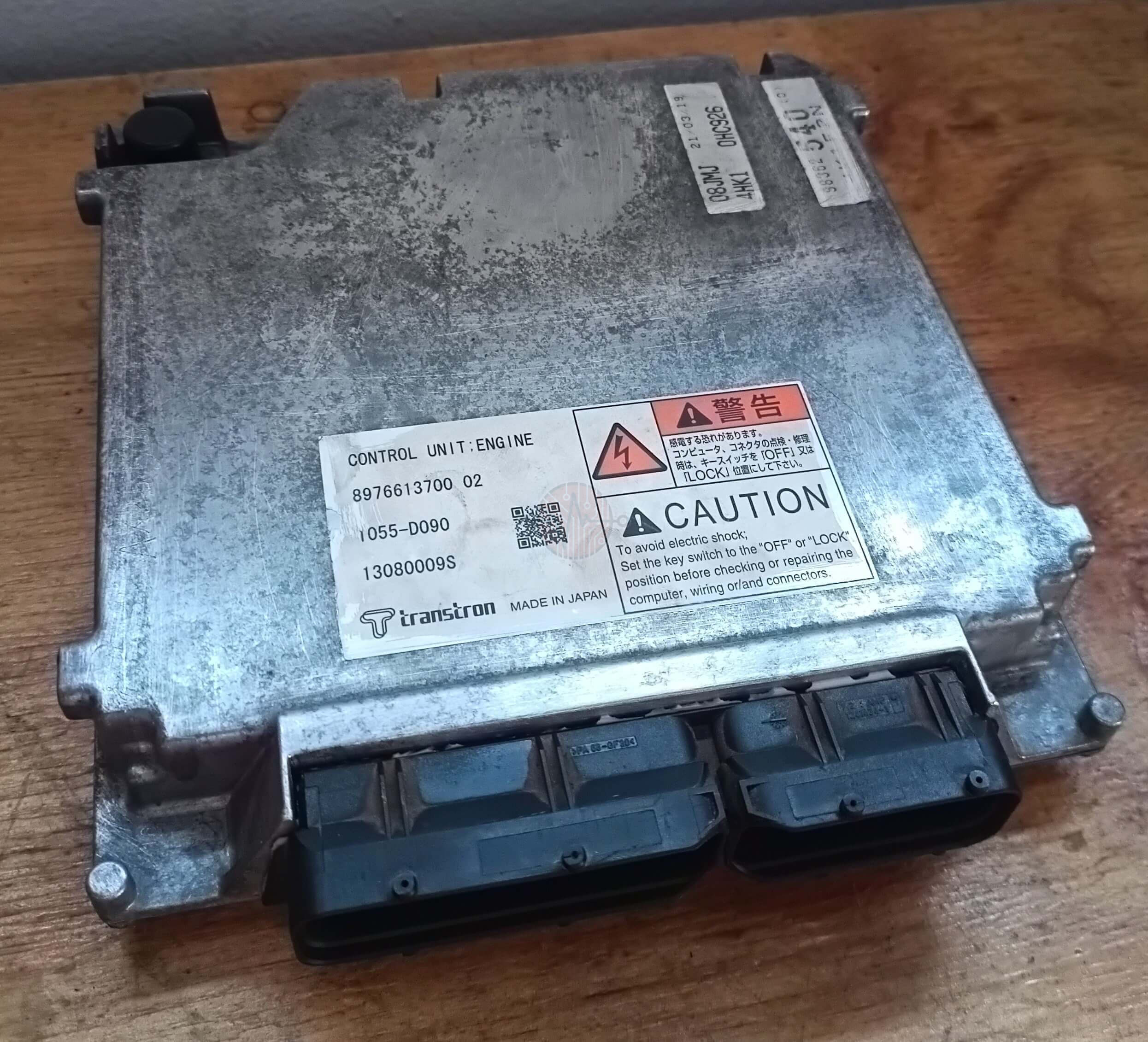

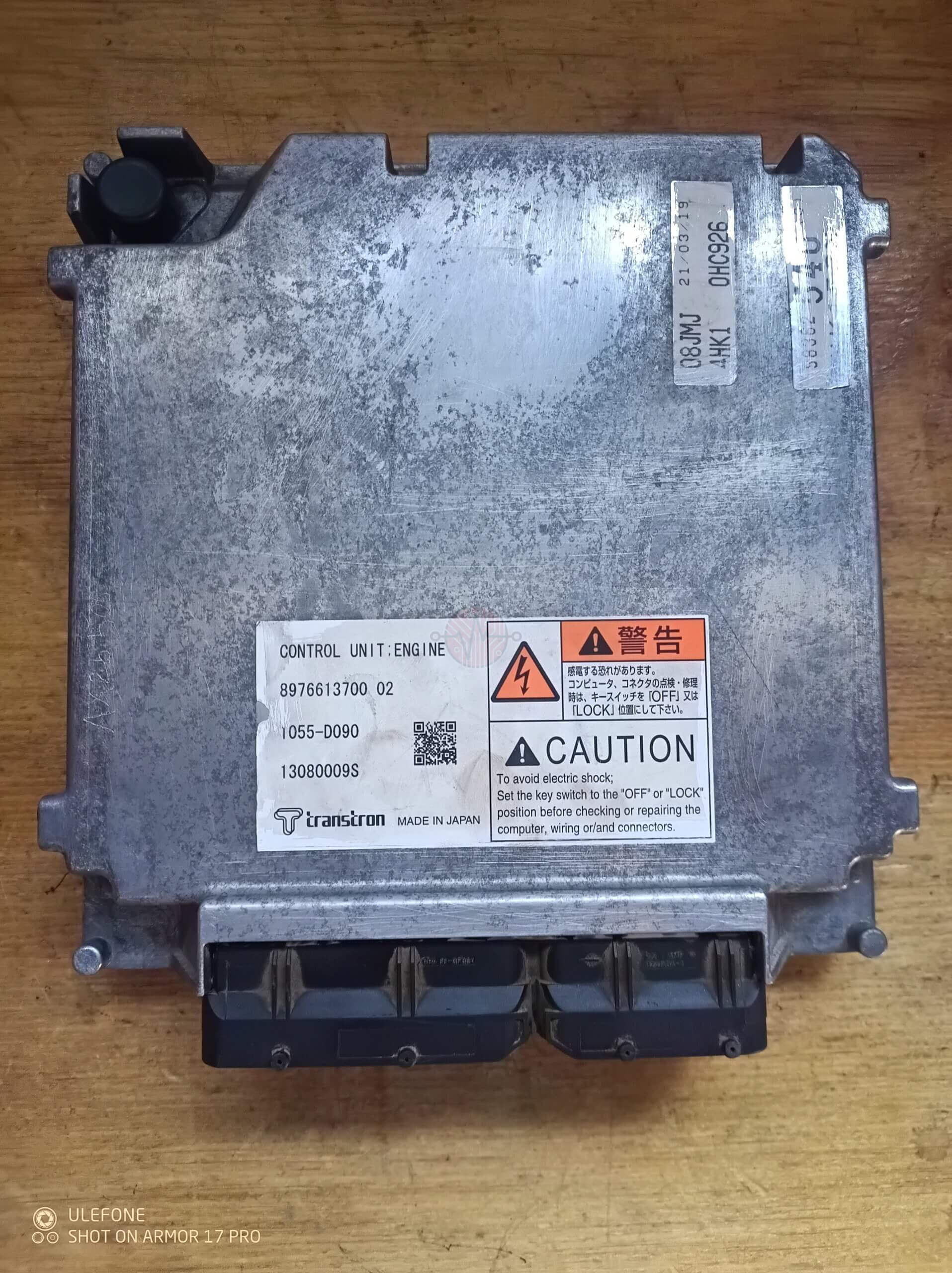

4HK1 Transtron ECUs
-
8976613700
-
8976613700-02
-
13080009S
-
1055-D090
6HK1 Transtron ECUs
-
8976613701
-
8976613702
-
8976613703
If your ECU number differs, contact sales@autolectronix.co.za.dedi678.jnb2.host-h.net for confirmation.
⭐ Our Isuzu ECU Repair Process
1️⃣ Diagnostic Evaluation
We perform full circuit-level testing using specialised Isuzu ECU simulators.
2️⃣ Component-Level Repair
Failed ICs, power transistors, MOSFETs, and PCB paths are replaced with OEM-grade components.
3️⃣ Firmware Restoration
We repair corrupted program areas or clone software from verified data sources.
4️⃣ Final Bench Test
Each repaired ECU is tested on a simulated Isuzu 4HK1 / 6HK1 engine environment.
⭐ Supported Vehicles
Our Isuzu 4HK1 6HK1 ECU Repair service covers:
🚚 Isuzu Trucks
-
NPR 300 / 400 / 500
-
NQR 450 / 500
-
FSR / FVR Series
-
FVZ
-
GIGA Series
🏗 Industrial / Construction Machines
-
Hitachi
-
Sumitomo
-
Other 4HK1/6HK1-powered equipment
⭐ Why Choose Autolectronix?
-
OEM-level repairs at a fraction of replacement cost
-
Full bench testing before dispatch
-
3-month warranty (extendable)
-
Fast turnaround to minimise downtime
-
Nationwide courier support
